Product Information

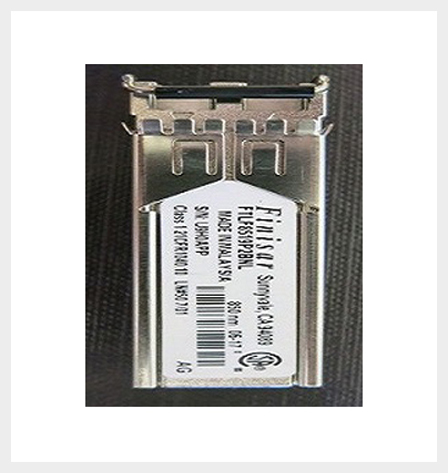

Finisar^® FTLF8519P2BNL Compatible 1000Base-SX SFP (mini-GBIC) Transceiver Module (Multimode, 850nm, 550m, LC) – TAA Compliant

Finisar SFP Transceiver FTLF8519P2xNL PRODUCT FEATURESUp to 2.125 Gb/s bi-directional data linksHot-pluggable SFP footprintBuilt-in digital diagnostic functions850nm Oxide VCSEL laser transmitter Duplex LC connectorRoHS Compliant and Lead-FreeUp to 500m on 50/125µm MMF,300m on 62.5/125µm MMFMetal enclosure, for lower EMISingle 3.3V power supplyLow power dissipationExtended operating temperature range: -20°C to 85°C APPLICATIONS1.25 Gb/s 1000Base-SX EthernetDual Rate 1.063/2.125 Gb/s Fibre Channel Finisar’s FTLF8519P2xNL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1.They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std802.32 and Fibre Channel FC- PI-2 Rev. 5.03. They are RoHS compliant and lead- Directive 2002/95/EC4 and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
